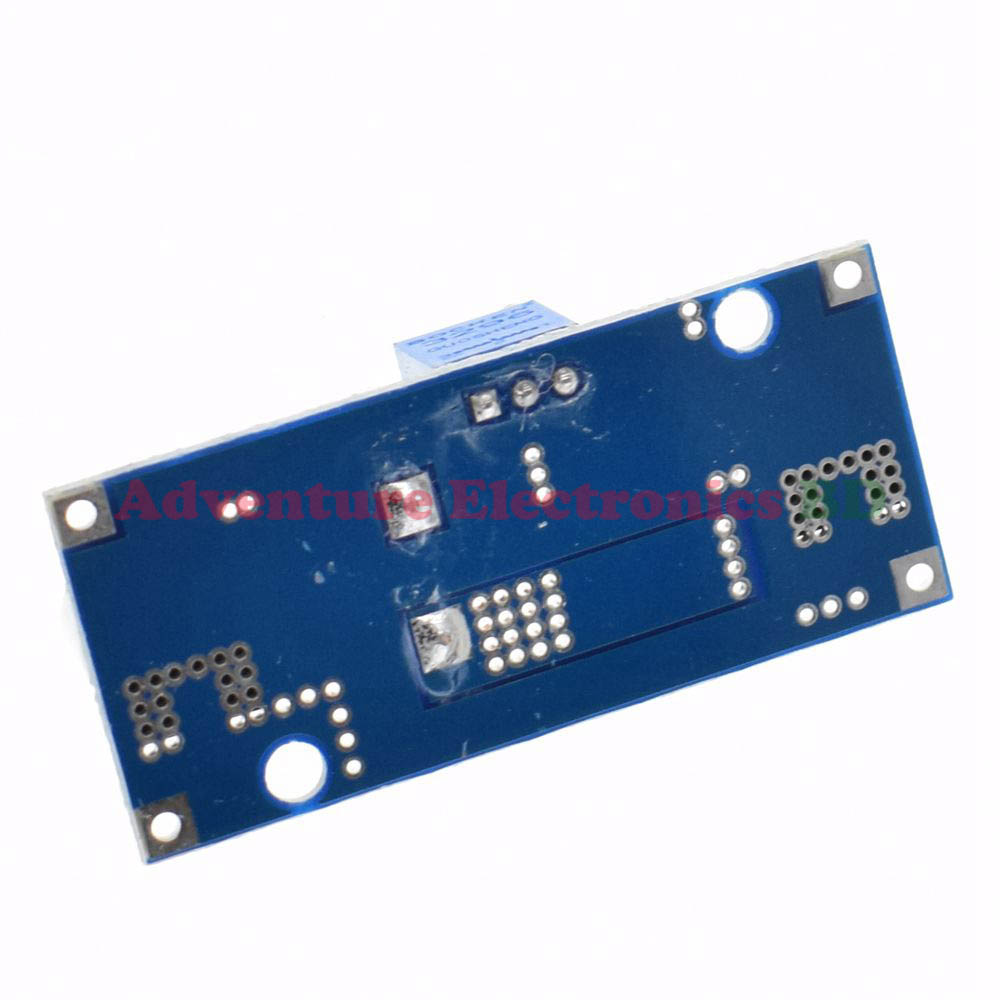

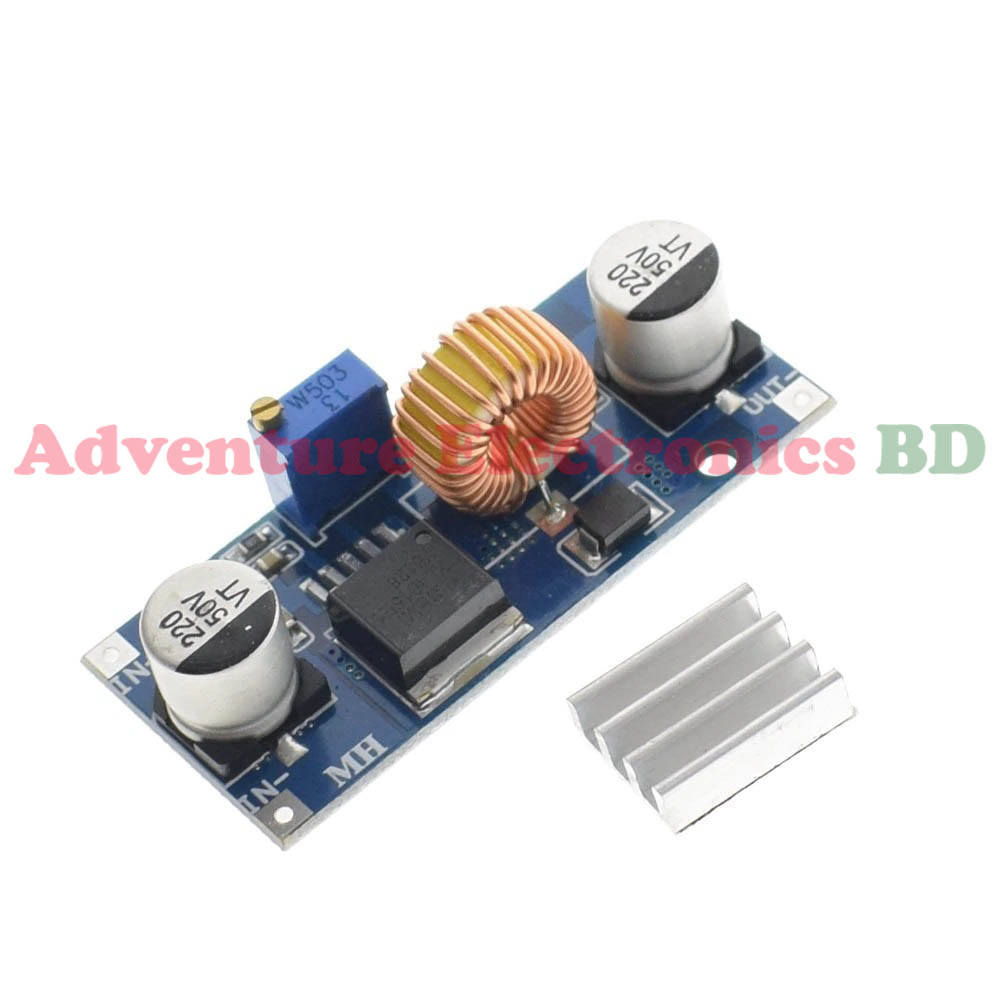

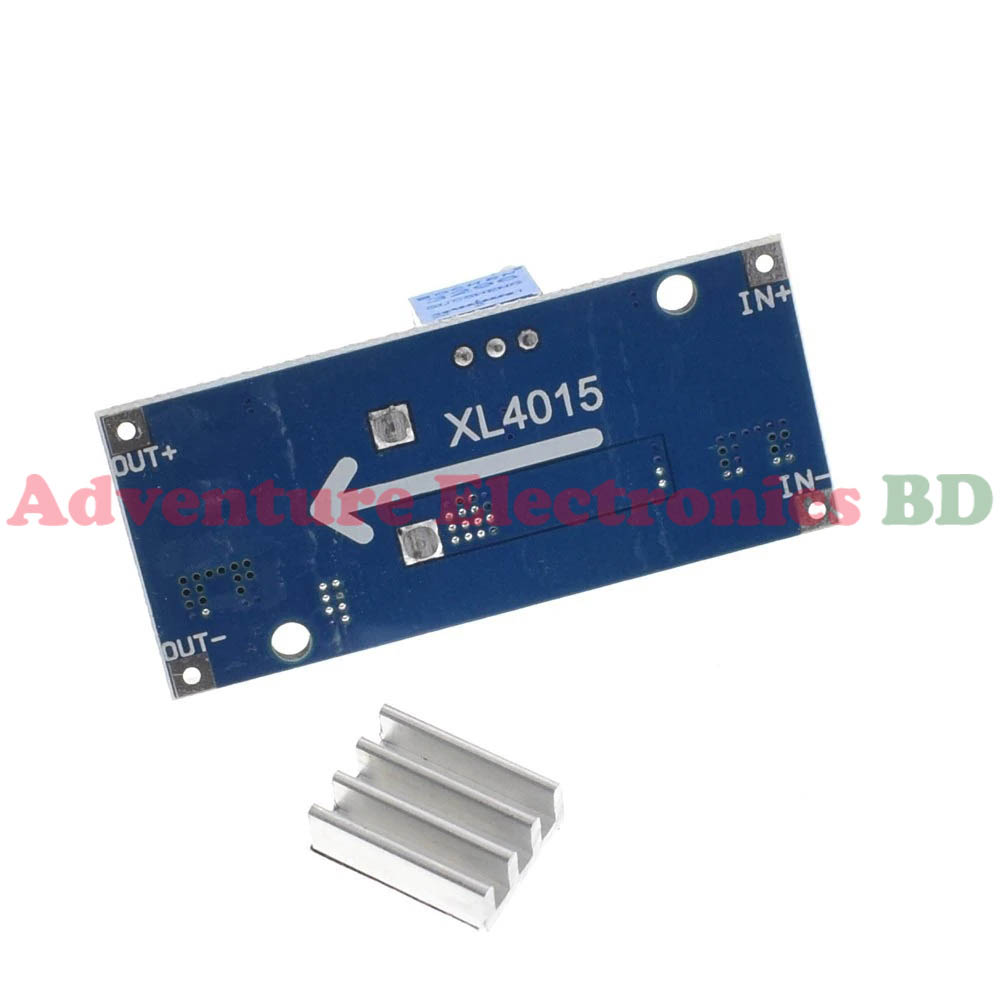

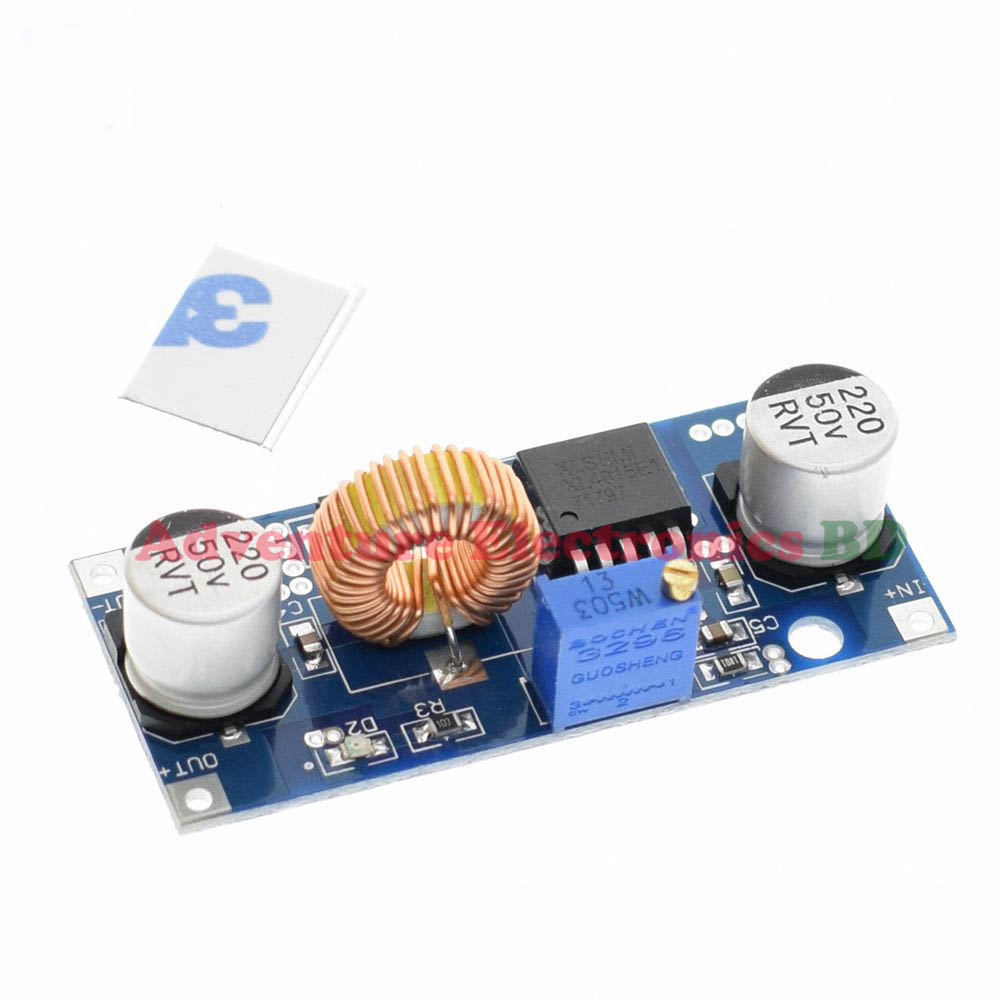

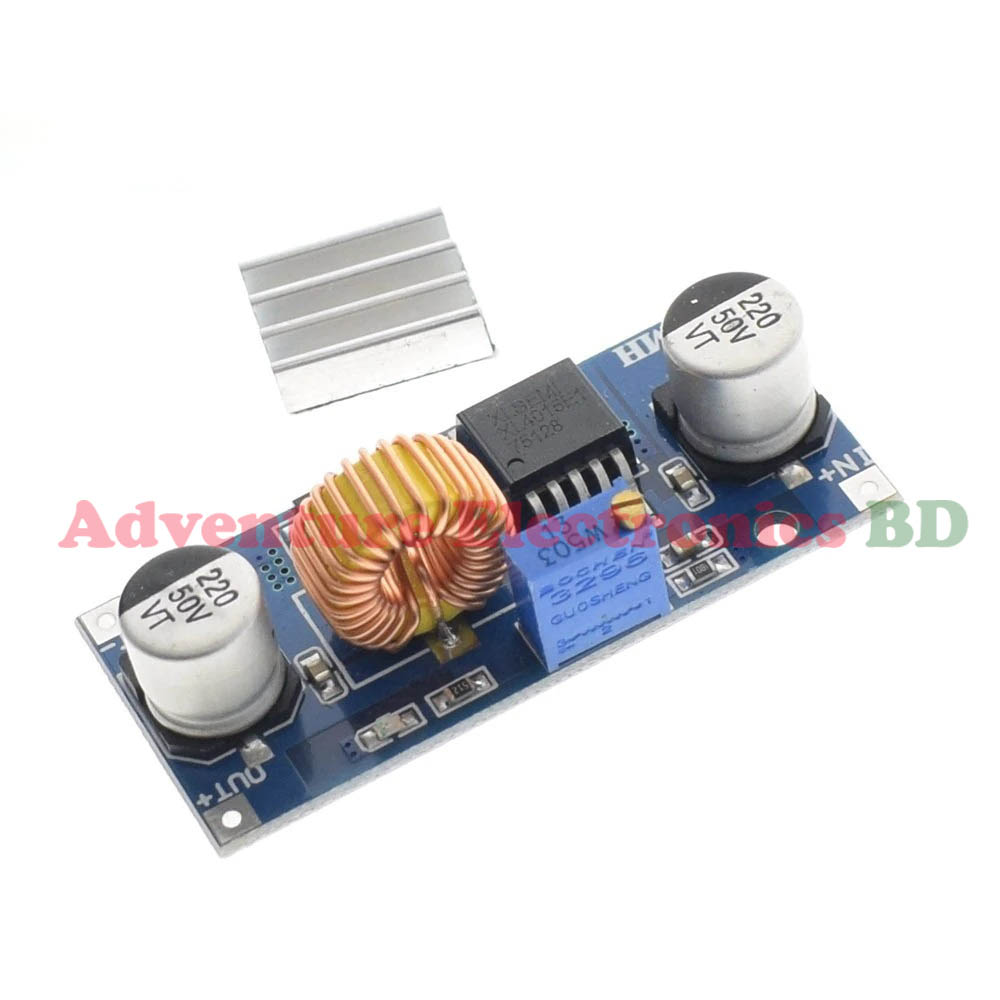

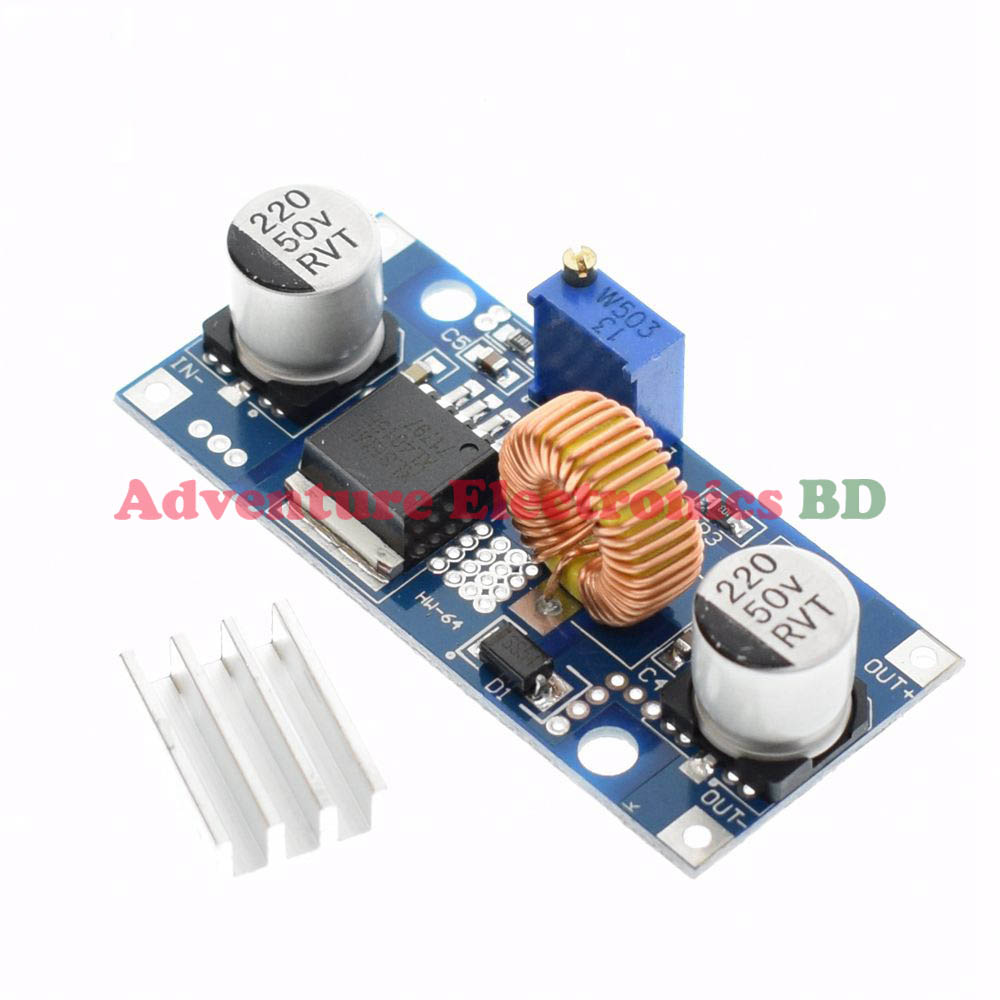

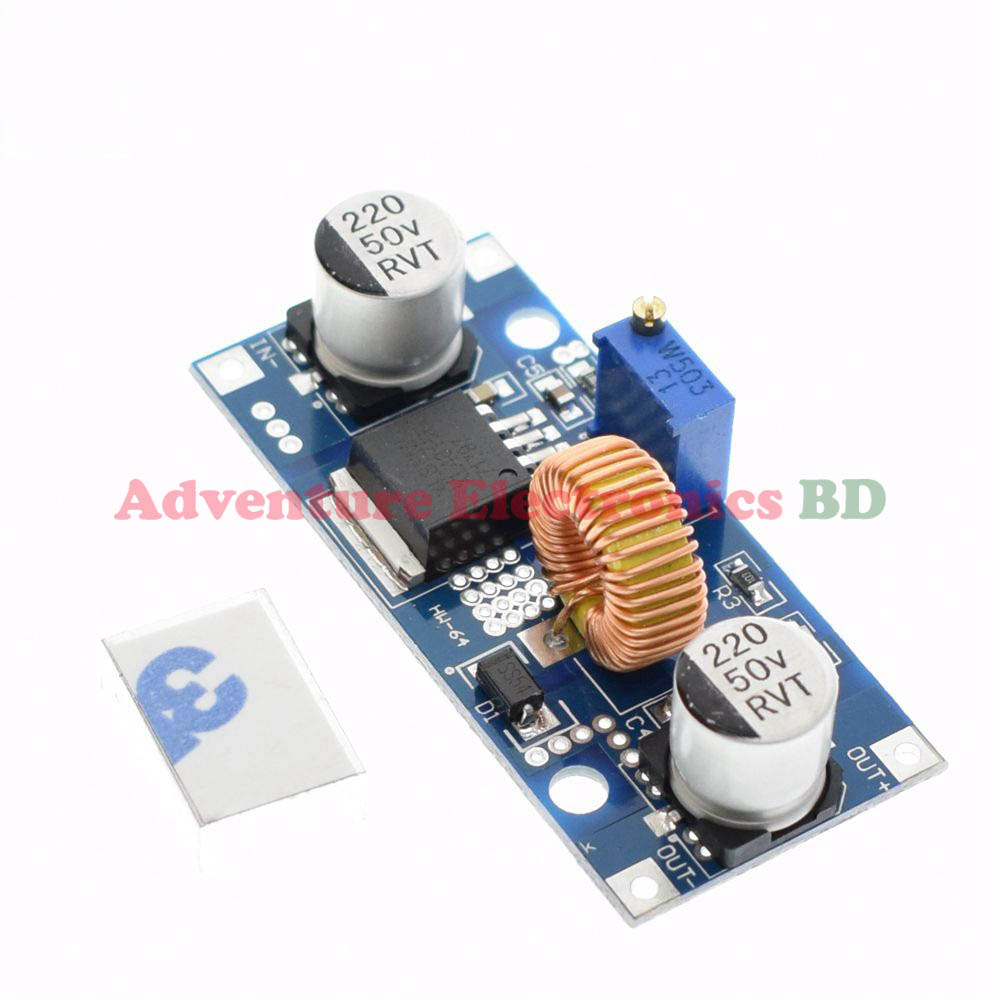

XL4015

৳ 300.00 ৳ 250.00

XL4015

Compare

Description

Module nature: Non-isolated buck module (BUCK)

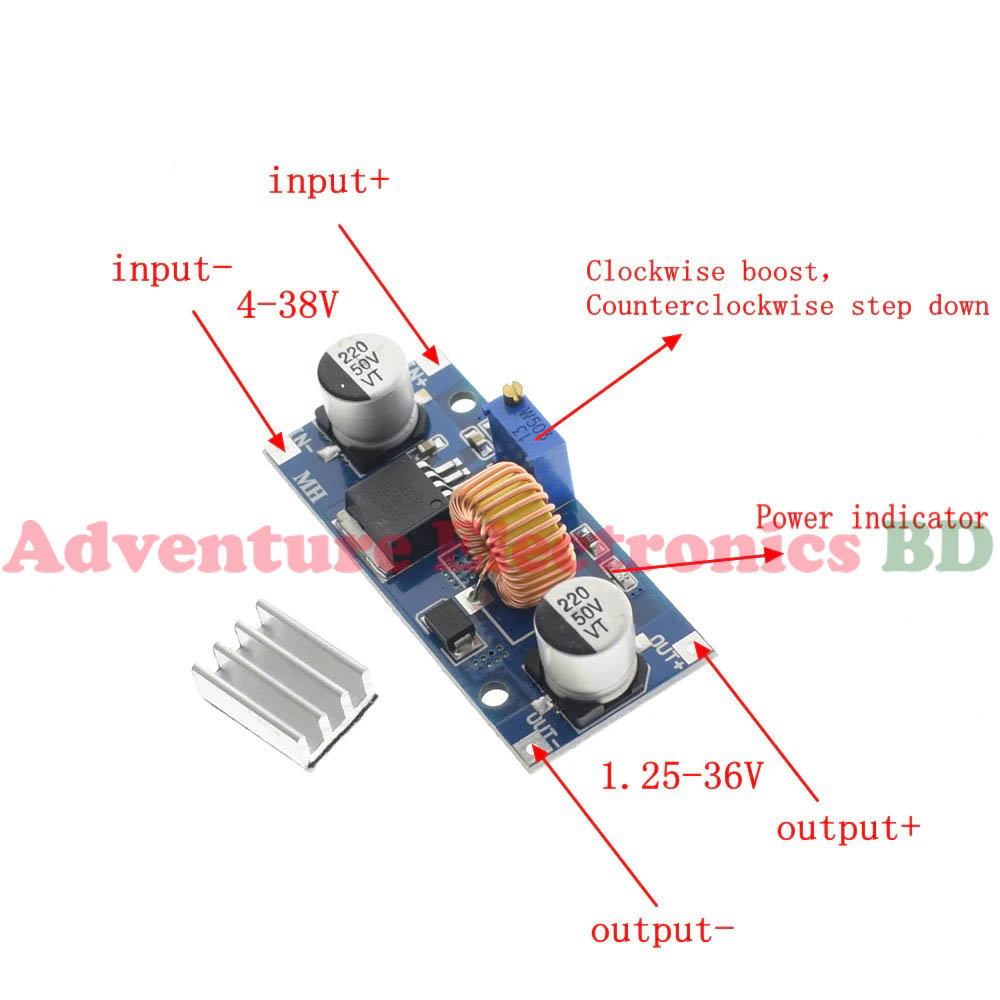

Input voltage: 4-38V (input please try not to exceed 38V)
Output voltage: 1.25-36V continuously adjustable
Output current: 0-5A
Output power: 75W
Operating temperature: -40 ~ +85 degrees
Operating frequency: 180KHz
Conversion efficiency: up to 96%
Load regulation: S (I) ≤ 0.8% (input 24V, output 12V, load from 1 ~ 4.5A change measured)
Voltage regulation: S (u) ≤ 0.8% (output 12V, 4A, the voltage from 18 ~ 32V measured when)
Power indicator: Yes
Short-circuit protection: Yes (limit current 8A)
Over-temperature protection: Yes (automatic shutdown after over-temperature output)
Input reverse polarity protection: None, (if necessary, input high current diode in series)
Installation: 2 3mm screws
Wiring: welding, V-IN as the input, V-OUT as the output
