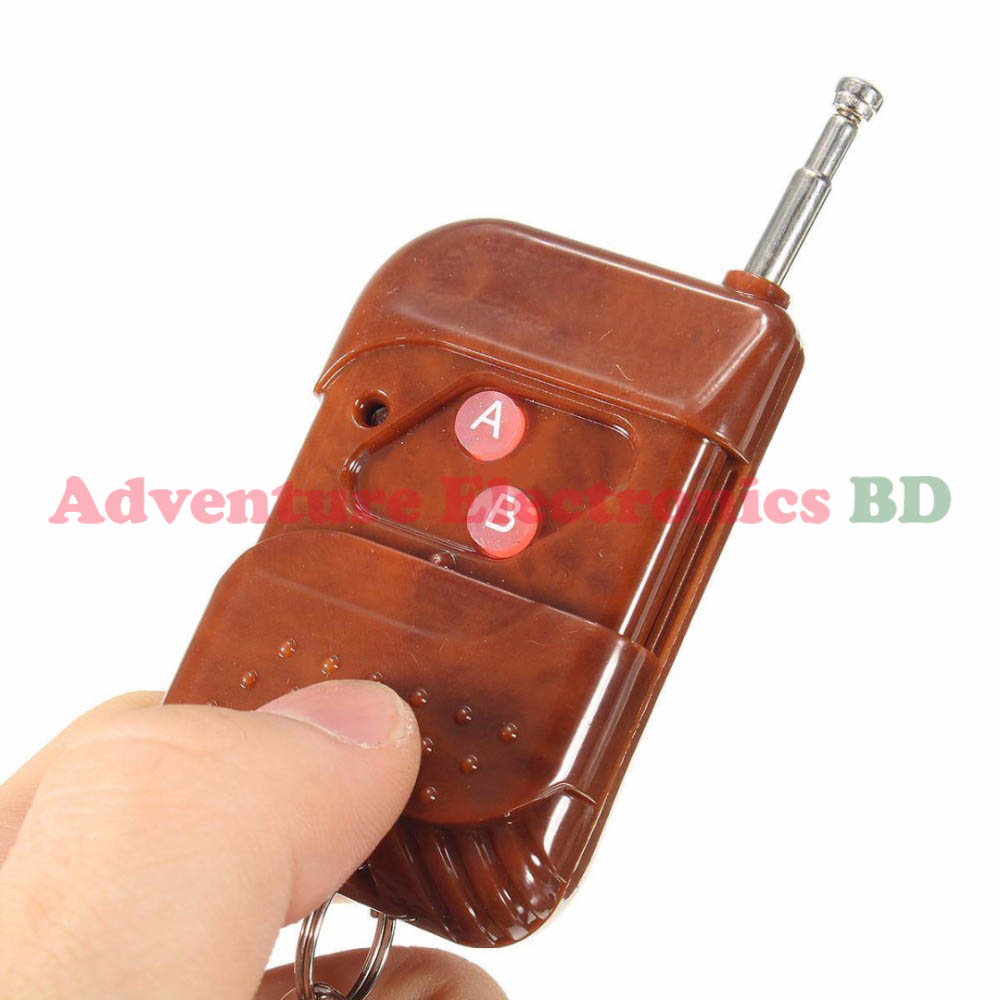

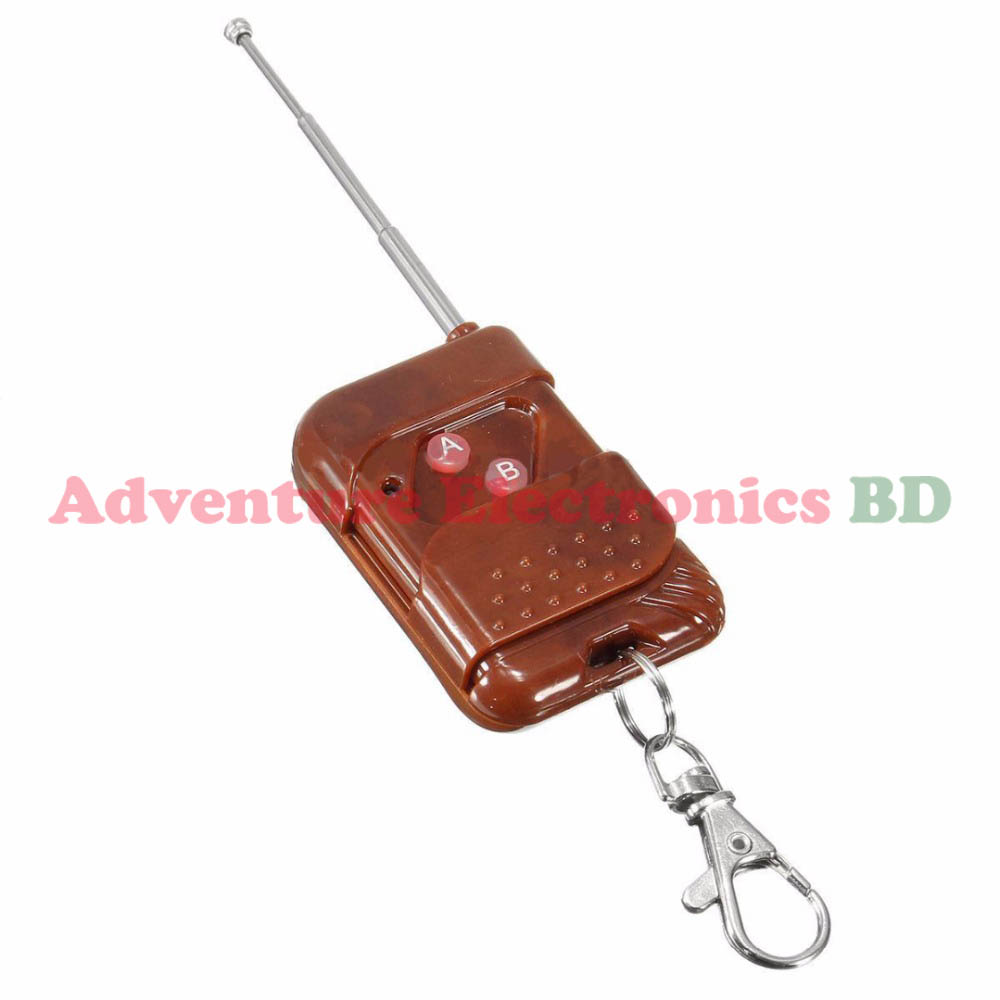

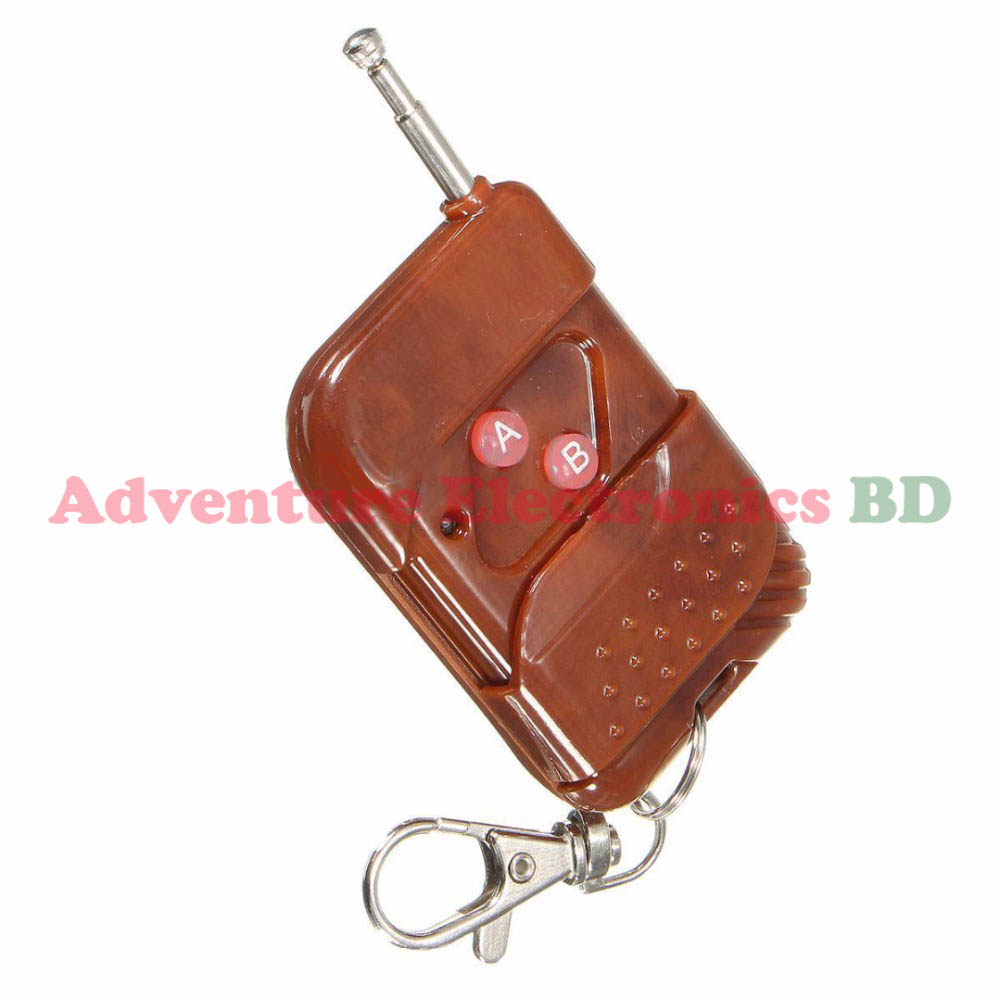

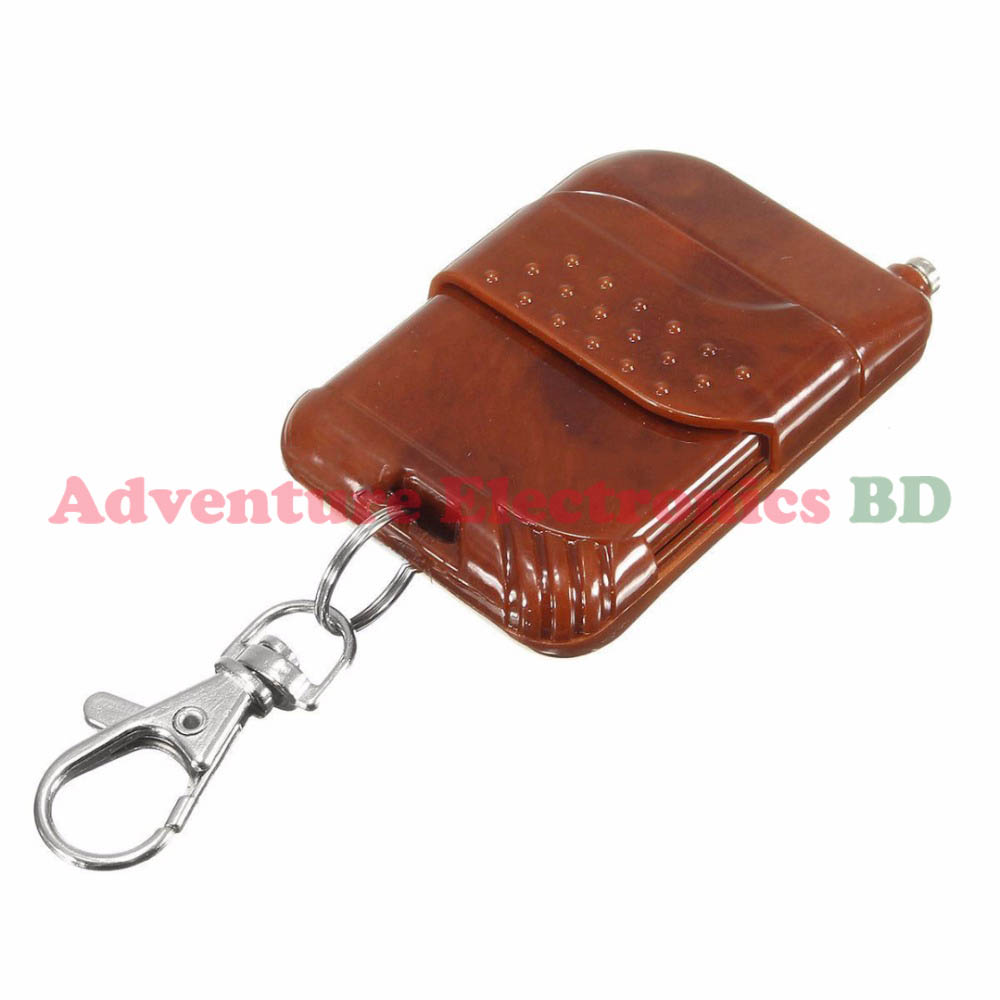

Wireless Remote Control
Material: ABS Plastic
Battery:23A Battery (not included)
Operating voltage: 12V
Frequency: 433MHZ
Current job: 9 ~ 12mA
Transmitting power: 10-15mw
Frequency deviation: ± 0.2MHz

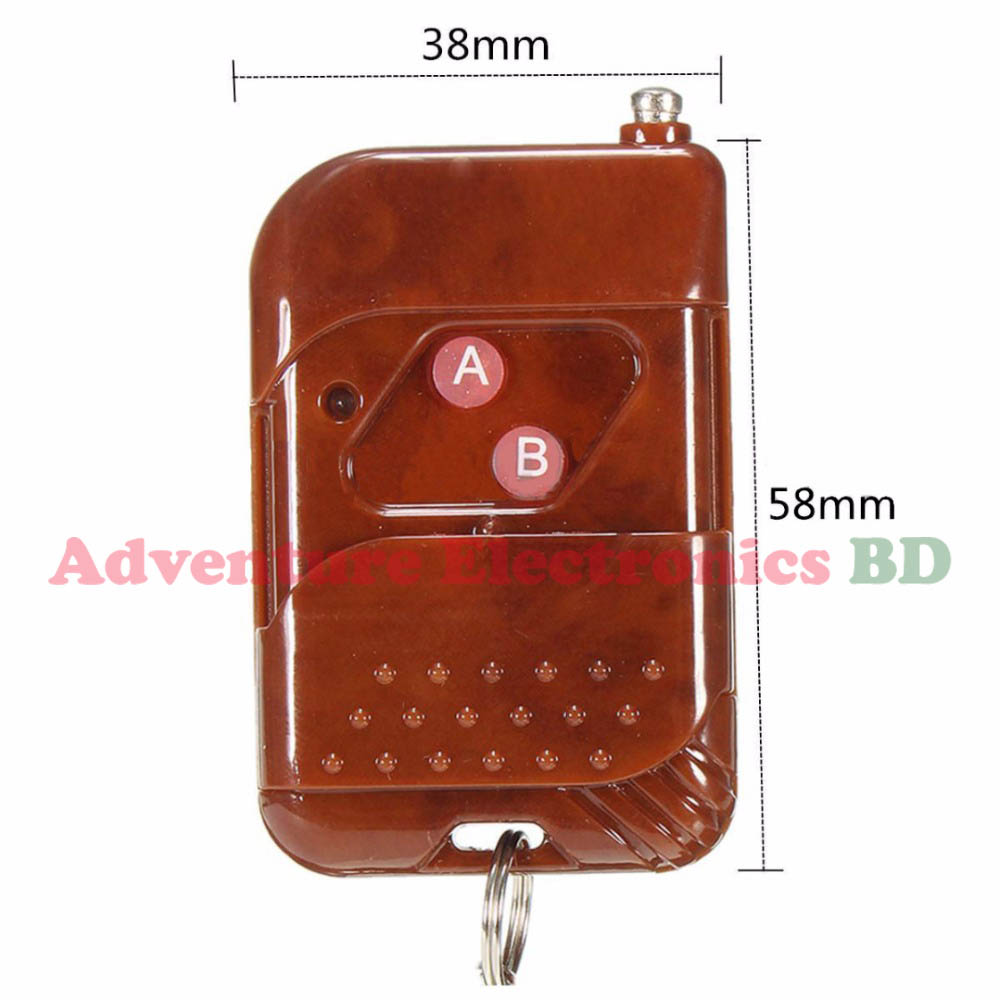

Size (approx.): 58x38x15 (mm) (LxWxH)
Suitable for all lights.
Easy to install and simple to use.
Energy-saving and environment protection
Fast response and long control distance.
Application: Garage Door, Household Electrical Appliances, RGB lights
Stable performance and strong to resist interference, not obstructed by walls and furniture!
Reference distance: 150 meters (This is the theory distance in open environment without interference, practical application due to the interference environment and decreased)
Characteristic: Double control(wall switch function and control function),safety(the shell applies to the fire-retardant material),easy installation(just wire connection)

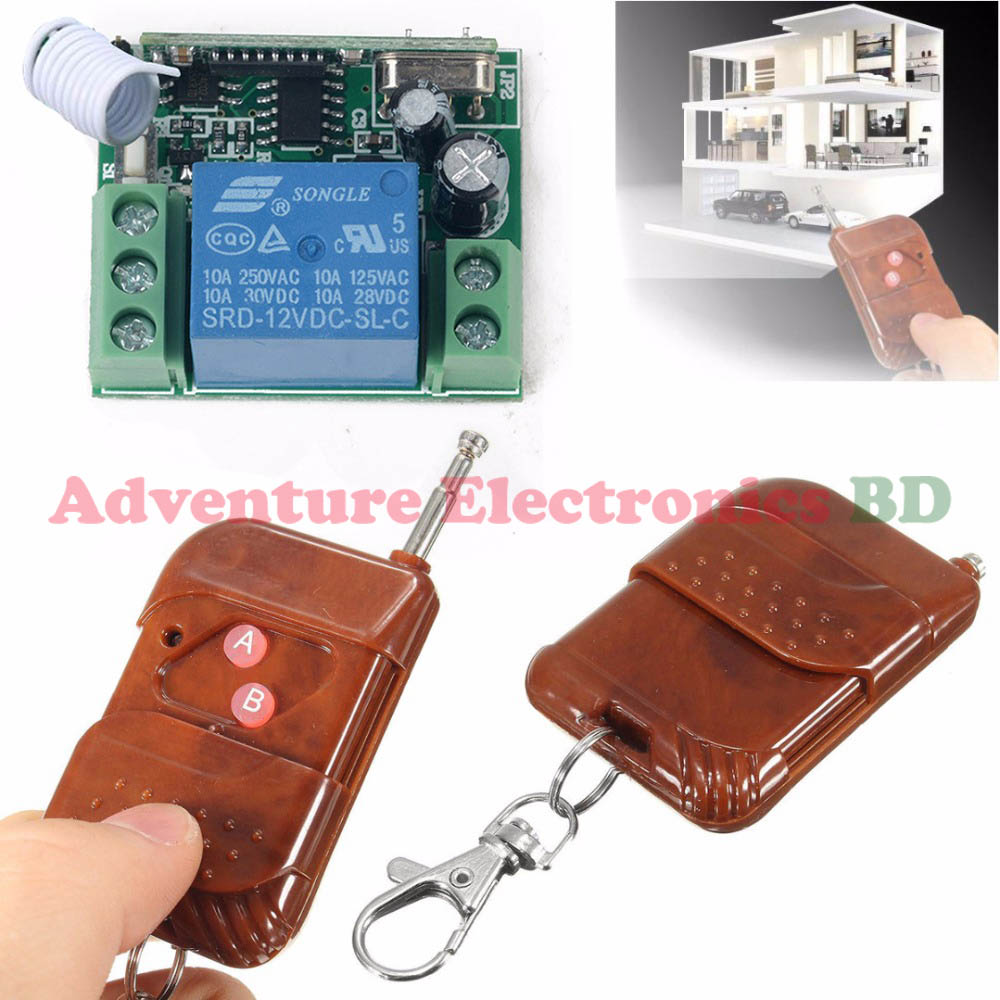

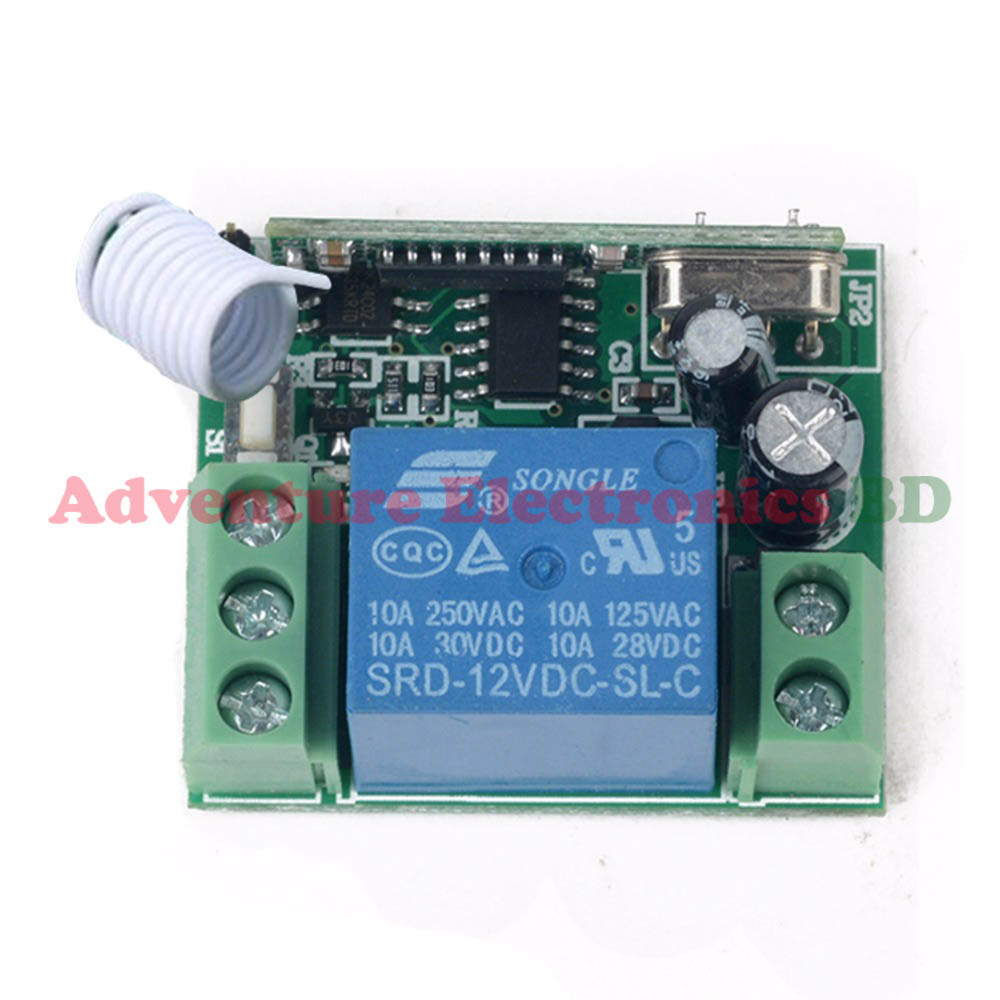

1 Channel Wireless Relay Switch
Channel: 1CH
Output Current: 10A
Input Voltage: DC10-14V
Working Voltage: DC12V
Standby Current: ＜5MA
RF Frequency: 433MHZ
Receiver Sensitivity: >90dBm
Dimension (approx.):3.5*3*1.6cm
RF Working mode: Super heterodyne receiver
Remote Control Distance: >100 meter(In open environment)
Decoding Way: MCU Software decoding
Can store the number of remote control:50
Support remote control type: Fixed code, learning code
Wiring Method: Fixed wiring terminal
Rated load:10A 250VAC / 10A 125VAC, 10A 30VDC / 10A 28VDC

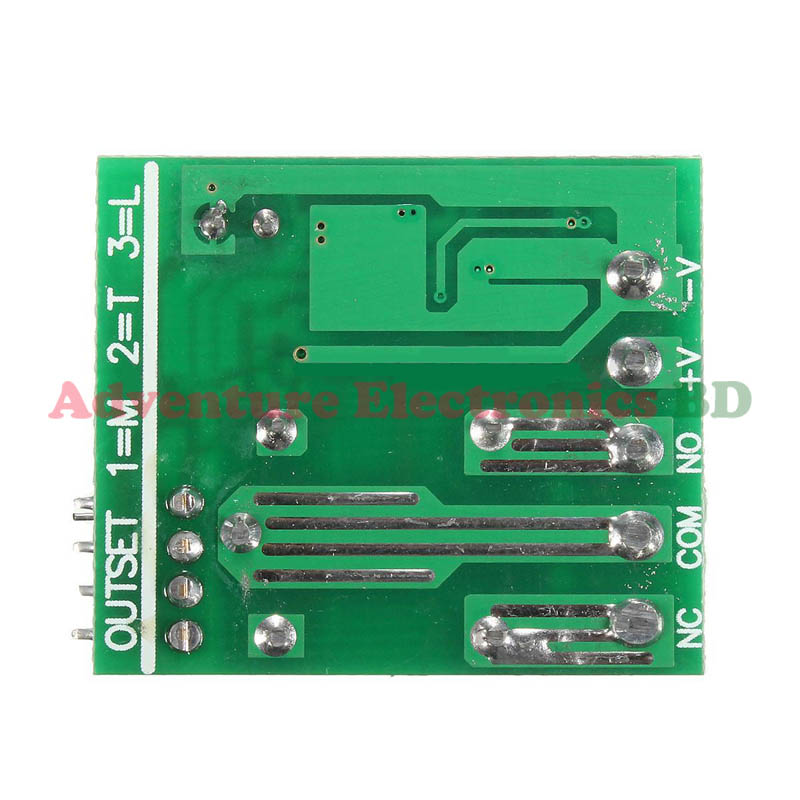

Output: Normally open, Common, Normally closed
Multiple working modes: (Jog/Non-Latched ,inter-lock/Latched ,self-lock /Self-Latched)
Working/output way:
Jog/Non-Latched: Press one button is Working /ON. Loosen your finger on the same button is Stop/OFF. One channel switch need one buttons remote control.
Self -lock/Self-Latched: Press one button for one time is working/ON. Press the same button again is stop/OFF. One channel switch need one buttons remote control.
Inter-lock /Latched: Press one button is working/ON, press another button is stop/OFF. One channel switch need 2 buttons remote control.
Delay: Press remote control relay pull-in, release the remote control and begin timekeeping, after 5s,10s,15s will automatically close the relay
