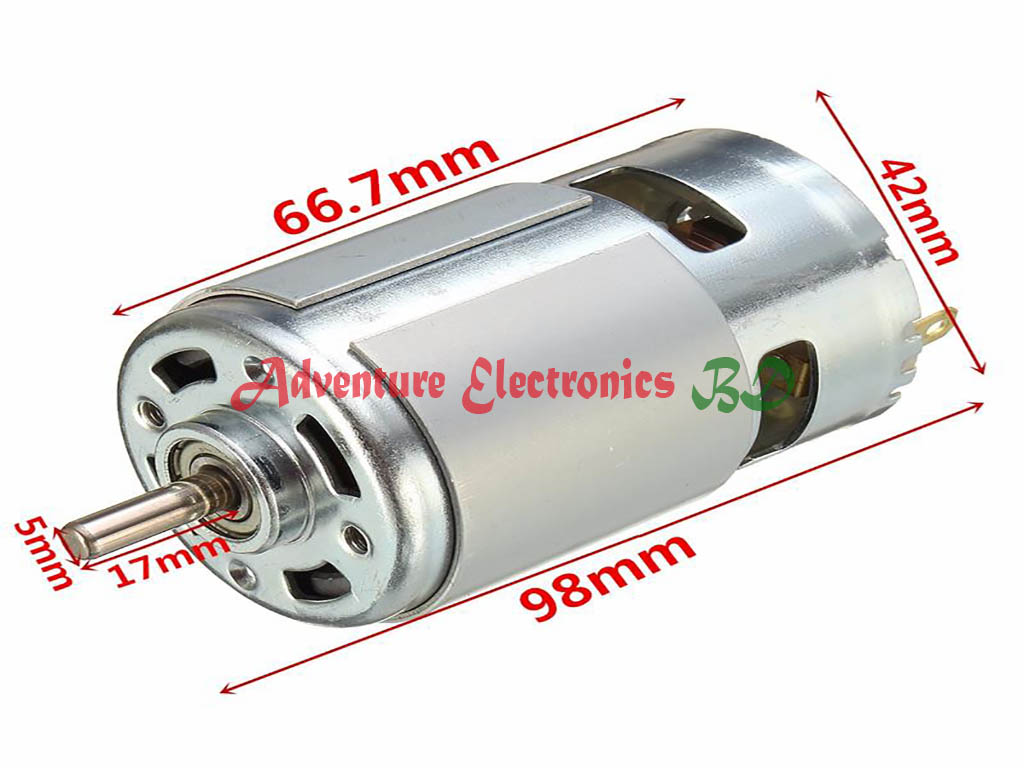

Shaft Diameter: Approx. 5 mm
Shaft length: Approx. 17 mm
Body length: Approx. 66.7 mm
Front steps diameter: Approx. 17.4 mm
Former high level: Approx. 4.7 mm
Body diameter: Approx. 42 mm
Motor Overall Length: Approx. 98 mm
Diagonal installation pitch: Approx. 28.8 mm
Mounting hole size: M4
Mounting hole: 2

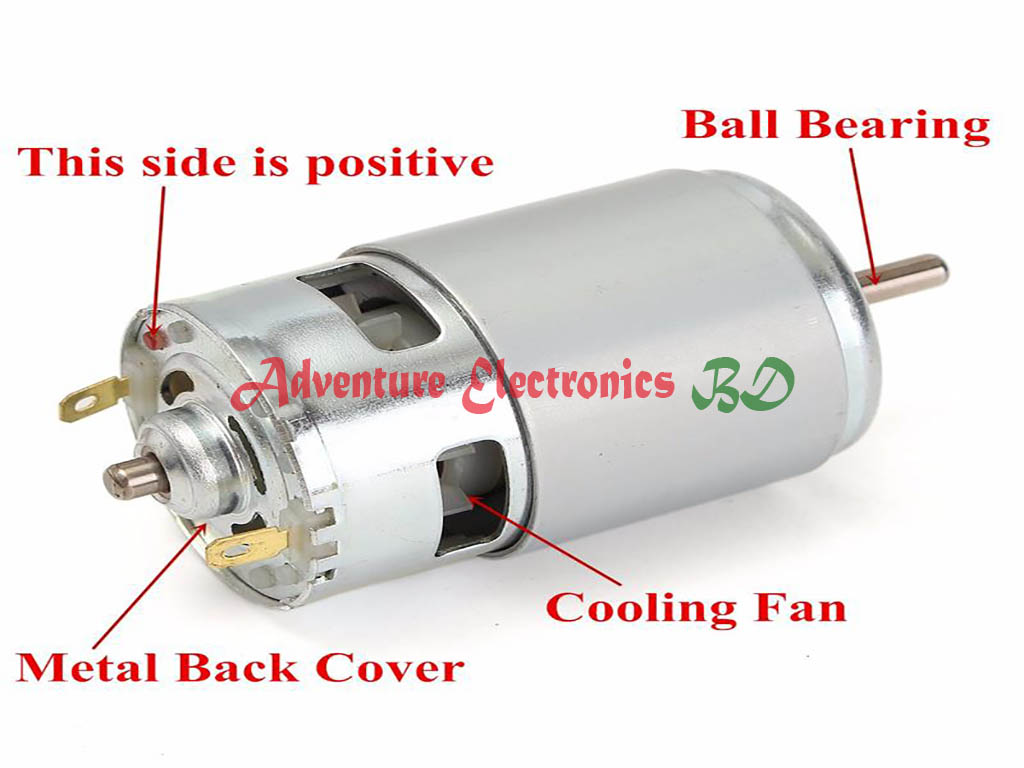

Cooling fan: Yes
Rated voltage: 24 V (Max. 36V)
Current Rating: 0.16 A
Rated Speed: 3500–9000 RPM
Different voltage parameters:
DC 12V, current 0.14A, speed 3500RPM
DC 18V, current 0.15A, speed 4500RPM
DC 24V, current 0.16A, speed 7000RPM
DC 30V, current 0.17A, speed 8100RPM
DC 36V, current 0.20A, speed 9000RPM
Features:

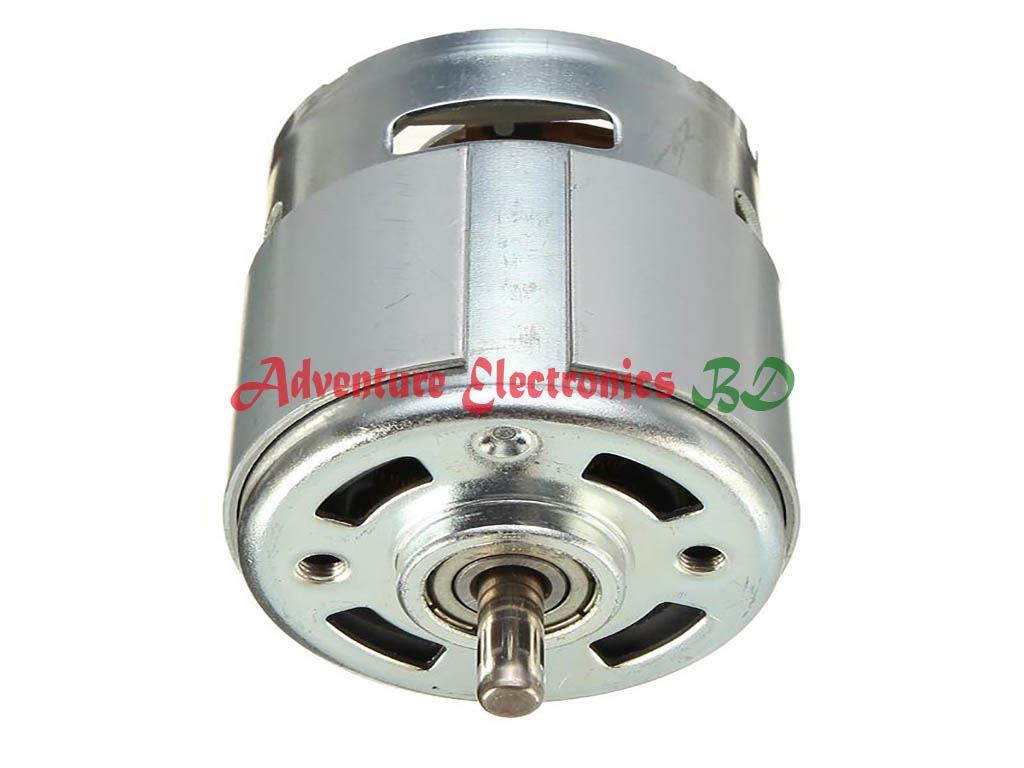

The front is ball bearing and back-end is copper
5 groups winding
At a voltage of 12V-24V , large torque, low noise
